Module 5: Combining ambient and sidecar mode

Istio’s ambient mode is ideal for new mesh deployments. But it can be combined with sidecars, with caveats:

Existing sidecar meshes will require an update (restart)
Traffic between sidecars and ambient workloads will bypass waypoints, meaning only L4 features are applied.

Recommendation: Keep ambient and sidecar workloads in SEPARATE namespaces.

About this module

In this module we are going to create a second ingress namespace with the control service inside. But the control service uses a sidecar as dataplane and is communicating with the travel portals, which are running in ambient mode.

Navigate to the subdirectory: 050-ambient-and-sidecar

Task 1: Create the namespace

Create the travel-control-sidecar namespace with the following command:

apiVersion: v1
kind: Namespace
metadata:
  labels:
    istio-discovery: enabled
    istio-injection: enabled
  name: travel-control-sidecar
spec: {}

oc apply -f 01-ns-create.yaml

The namespace is labeled with the configured istio discovery selector istio-discovery=enabled and the injection label istio-injection=enabled. Istio will inject sidecars for workloads in this namespace.

Task 2: Create pod monitors

PodMonitor objects must be applied in all mesh namespaces:

apiVersion: monitoring.coreos.com/v1
kind: PodMonitor
metadata:
  name: istio-proxies-monitor
  namespace: travel-control-sidecar
spec:
  selector:
    matchExpressions:
    - key: istio-prometheus-ignore
      operator: DoesNotExist
  podMetricsEndpoints:
  - path: /stats/prometheus
    interval: 30s
    relabelings:
    - action: keep
      sourceLabels: ["__meta_kubernetes_pod_container_name"]
      regex: "istio-proxy"
    - action: keep
      sourceLabels: ["__meta_kubernetes_pod_annotationpresent_prometheus_io_scrape"]
    - action: replace
      regex: (\d+);(([A-Fa-f0-9]{1,4}::?){1,7}[A-Fa-f0-9]{1,4})
      replacement: '[$2]:$1'
      sourceLabels: ["__meta_kubernetes_pod_annotation_prometheus_io_port","__meta_kubernetes_pod_ip"]
      targetLabel: "__address__"
    - action: replace
      regex: (\d+);((([0-9]+?)(\.|$)){4})
      replacement: '$2:$1'
      sourceLabels: ["__meta_kubernetes_pod_annotation_prometheus_io_port","__meta_kubernetes_pod_ip"]
      targetLabel: "__address__"
    - sourceLabels: ["__meta_kubernetes_pod_label_app_kubernetes_io_name","__meta_kubernetes_pod_label_app"]
      separator: ";"
      targetLabel: "app"
      action: replace
      regex: "(.+);.*|.*;(.+)"
      replacement: "${1}${2}"
    - sourceLabels: ["__meta_kubernetes_pod_label_app_kubernetes_io_version","__meta_kubernetes_pod_label_version"]
      separator: ";"
      targetLabel: "version"
      action: replace
      regex: "(.+);.*|.*;(.+)"
      replacement: "${1}${2}"
    - sourceLabels: ["__meta_kubernetes_namespace"]
      action: replace
      targetLabel: namespace
    - action: replace
      replacement: "default"
      targetLabel: mesh_id

oc apply -f 02-pod-monitors-create.yaml

Task 3: Deploy the travel-control sidecar application component

This time we deploy the same Travel control dashboard with sidecar injection.

For sidecar proxies to use the HBONE/mTLS signaling option when communicating with ambient destinations, they need to be configured with ISTIO_META_ENABLE_HBONE set to true in the proxy metadata.

Therefore the travel control deployment YAML has the following annotation:

spec:
  template:
    metadata:
      annotations:
        proxy.istio.io/config: |
          proxyMetadata:
            ISTIO_META_ENABLE_HBONE: "true"

Step 1: Apply the travel control deployment and service

oc apply -f 03-travel-control-app.yaml

deployment.apps/control created
service/control created

Check if we have two containers running in the pod:

oc get pods -n travel-control-sidecar -o jsonpath="{.items[*].spec.containers[*].name}"

control istio-proxy

Step 2: Create a Route for the `Travel Control Dashboard`

oc apply -f 04-travel-control-route.yaml

Step 3: Access the Travel Control Dashboard

Get the Travel Control Dashboard URL from the Route by running the following command:

echo "https://$(oc get routes -n travel-control-sidecar control-sidecar -o jsonpath='{.spec.host}')"

Open the Dashboard and verify it is working.

Step 4: Explore the Traffic Graphs

Whenever you make changes in the Travel Portal application, it takes some time until Kiali picks up the metrics from the user-workload-monitoring and you actually see the changes.

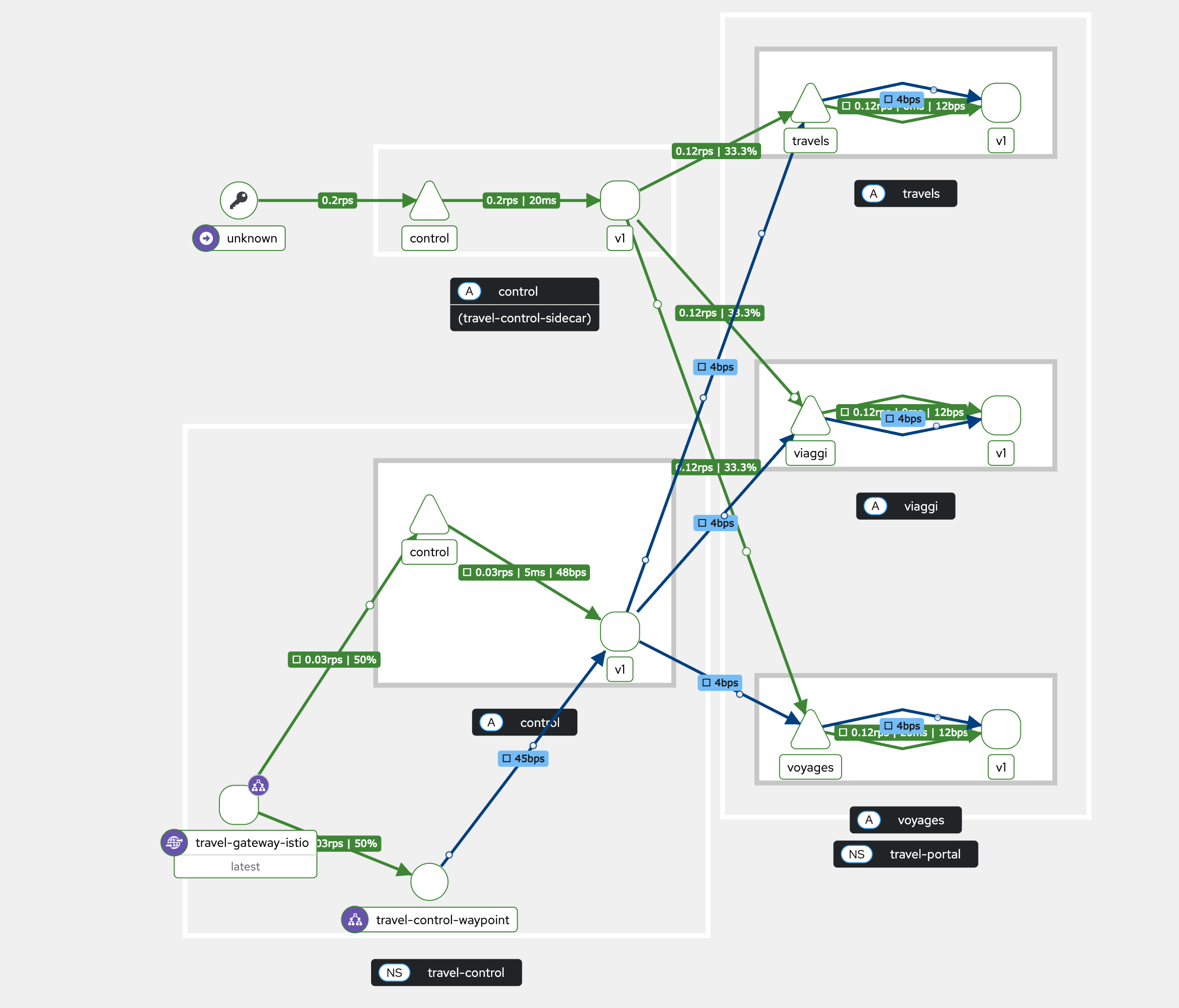

Go to Kiali, select the additional travel-control-sidecar namespace and watch the Traffic Graph:

Task 4: Clean up

Delete the travel-control-sidecar namespace:

oc delete project travel-control-sidecar

Congratulations! You have completed Module 5: Combining ambient and sidecar mode.
