Module 4: Understanding the Travel Demo Application

Travel Portal Domain namespace

The Travel Demo application simulates two business domains organized in different namespaces.

In a first namespace called travel-portal there will be deployed several travel shops, where users can search for and book flights, hotels, cars or insurance. The shop applications can behave differently based on request characteristics like channel (web or mobile) or user (new or existing). These workloads may generate different types of traffic to imitate different real scenarios. All the portals consume a service called travels deployed in the travel-agency namespace.

Travel Agency Services Domain namespace

A second namespace called travel-agency will host a set of services created to provide quotes for travel.

A main travels service will be the business entry point for the travel agency. It receives a destination city and a user as parameters and it calculates all elements that compose a travel budget: airfare, lodging, car reservation and travel insurance.

Each service can provide an independent quote and the travels service must then aggregate them into a single response.

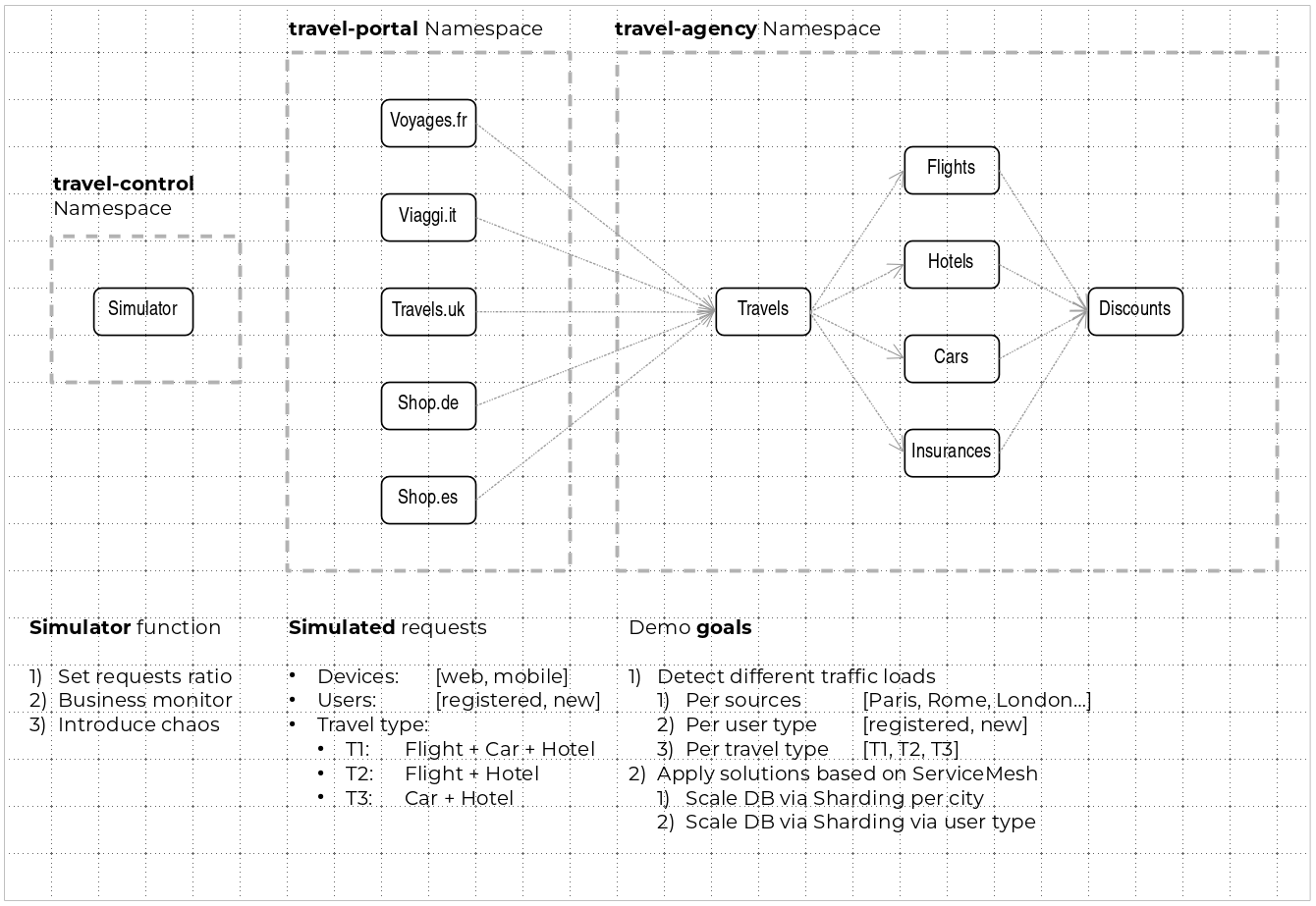

Additionally, some users, like registered users, can have access to special discounts, managed as well by an external service. Service relations between namespaces can be described in the following diagram:


Travel Portal and Travel Agency flow

A typical traffic flow consists of the following steps:

  1. A travel portal queries the travels service for available destinations

  2. The travels service queries the available hotels and returns to the portal shop

  3. A user selects a destination and a type of travel, which may include a flight and/or a car, hotel and insurance

  4. Cars, Hotels and Flights may have available discounts depending on user type.

Travel Control namespace

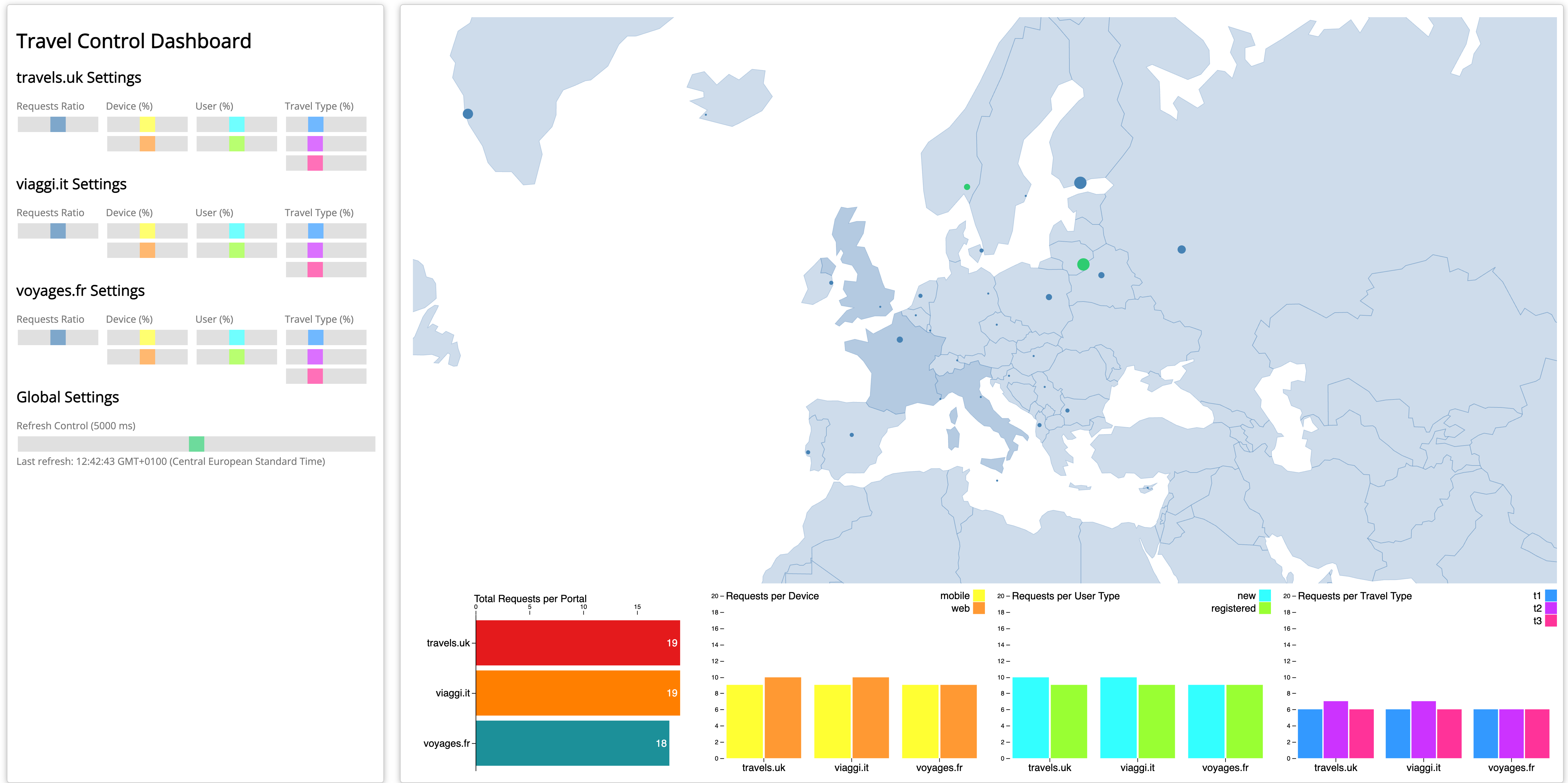

The travel-control namespace runs a business dashboard with two key features:

  • Allow setting changes for every travel shop simulator (traffic ratio, device, user and type of travel).

  • Provide a business view of the total requests generated from the travel-portal namespace to the travel-agency services, organized by business criteria as grouped per shop, per type of traffic and per city.
